Flight Test Revelations: The Grumman F-14 Tomcat

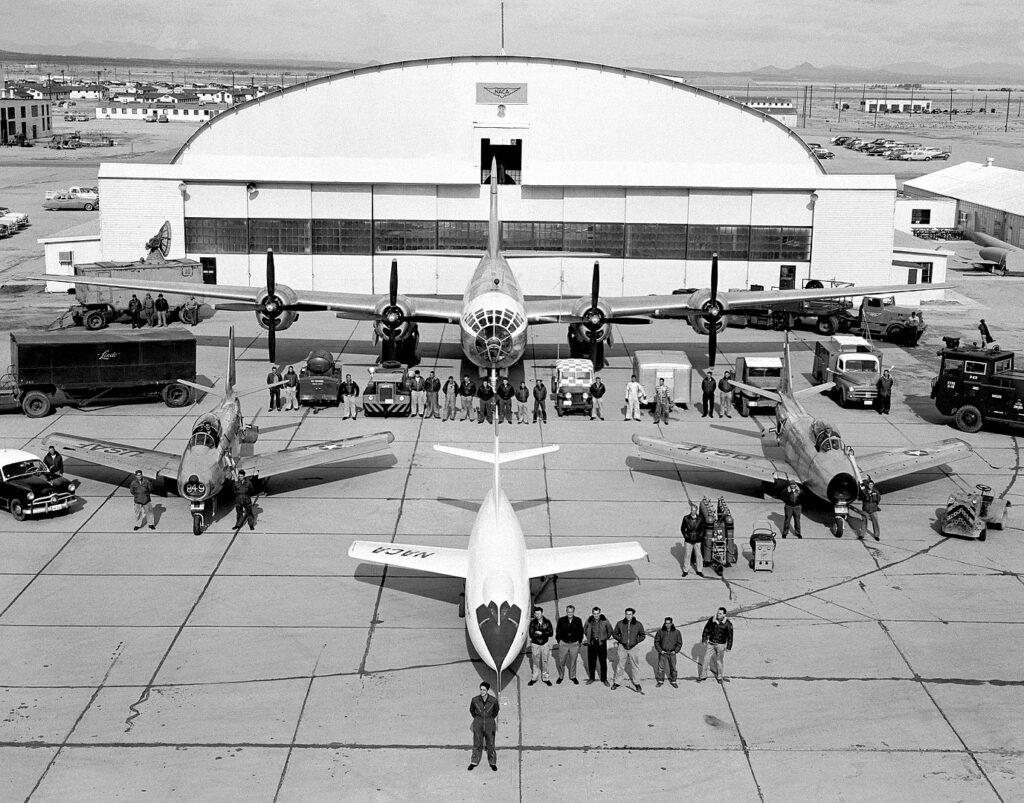

With the launch of "The Other First Man," We launched a fresh sequence called Flight Test Files , centered around the captivating heritage of aeronautics advanced through NACA and subsequently via NASA. The series showcases the airplanes managed by NASA’s Dryden Flight Research Center—which is now called the Armstrong Flight Research Center—based in Edwards, California. Ever since the 1940s, this center has served as a focal point for pioneering flight tests, playing an essential role in shaping contemporary aerospace technology.

Among the notable aircraft in Dryden’s research legacy stands the Grumman F-14 Tomcat, an iconic naval combat jet pivotal to two principal initiatives at the facility. One such project featured a uniquely adapted F-14 known as NASA 991, alternatively labeled as F-14 (1X). Here, “1X” denotes its status as Grumman’s experimental prototype. Between 1979 and 1985, this plane served as a cornerstone for joint efforts between NASA, the Navy, and Grumman aimed at investigating and enhancing the F-14’s performance during steep climbs and spins. Throughout 212 missions, researchers made substantial advancements including better control over the Tomcat when flying at sharp inclines, enhanced stability against unexpected departures and spinning events, along with decreased susceptibility to wing-rock—a lateral rocking phenomenon experienced under specific flight conditions.

The motivation behind the program stemmed from problems the Navy faced due to unintentional spins, ultimately linked to the aircraft’s aileron rudder interconnected mechanism. To address this issue, the collaboration between NASA, the Navy, and Grumman led to the development and testing of four distinct variations of the system designed to reduce these incidents. Despite the F-14’s distinctive roll management design—employing separate horizontal stabilizers and spoilers instead of conventional ailerons—the plane offered reliable handling across multiple velocities. However, this arrangement generated additional lateral forces capable of triggering spins. Although advantageous during carrier launches, this feature complicated the understanding and prediction of spin dynamics.

For the purposes of this study, NASA 991 received multiple significant upgrades such as a battery-operated backup power source, a probe mounted on the front for flight testing, and a specialized mechanism designed to recover from spins using hydraulic actuators on the leading-edge canards along with an optional emergency chute. Test flights conducted initially involved astronauts like Einar Enevoldson; subsequently, the plane transitioned under the management of both Grumman engineers and naval aviators based out of the Naval Air Station Patuxent River. This initiative represented the inaugural instance where aerial combat maneuvers became part of Dryden’s experimental protocols. Additional F-14 jets dispatched from bases in Point Mugu and NAS Miramar aided in assessing these novel spin regulation guidelines within mock battle situations. Despite their efficacy demonstrated through simulations, implementation of these regulations did not occur across active duty F-14 units until the advent of the advanced F-14D variant approximately fifteen years afterward.

During the program, Enevoldson devised a particular maneuvering method that turned out to be highly efficient and was subsequently incorporated into the spin tests conducted on the F/A-18 High Angle-of-Attack Research Vehicle (HARV). Besides its main objective, NASA 991 also evaluated a flush air data system designed for enhanced accuracy in measuring airspeeds. It further played a role in refining an aerodynamic model still utilized today within Navy training simulations. Additionally, this craft supplied crucial information regarding natural laminar flow which supported numerous future aerodynamic initiatives at NASA. The plane likewise took part in investigations related to flying at low altitudes when experiencing uneven engine thrust distribution. On September 6, 1985, NASA 991 was handed back to the Navy after successfully completing all assigned tasks and significantly influencing both NASA’s and the Navy’s aerospace research efforts.

The F-14 was scheduled to come back to Dryden shortly thereafter, now designated as NASA 834. It took part in an initiative called the Variable-Sweep Transition Flight Experiment (VSTFE) during 1986 and 1987. The purpose of this effort was to assess the feasibility of achieving natural laminar flow on aircraft with adjustable sweep wings operating at high subsonic velocities. Information gathered from these tests played a crucial role in understanding how the transition layer formed across various flight scenarios. This knowledge helped direct the development of upcoming civilian and military transport designs aiming to enhance their performance during cruising phases.

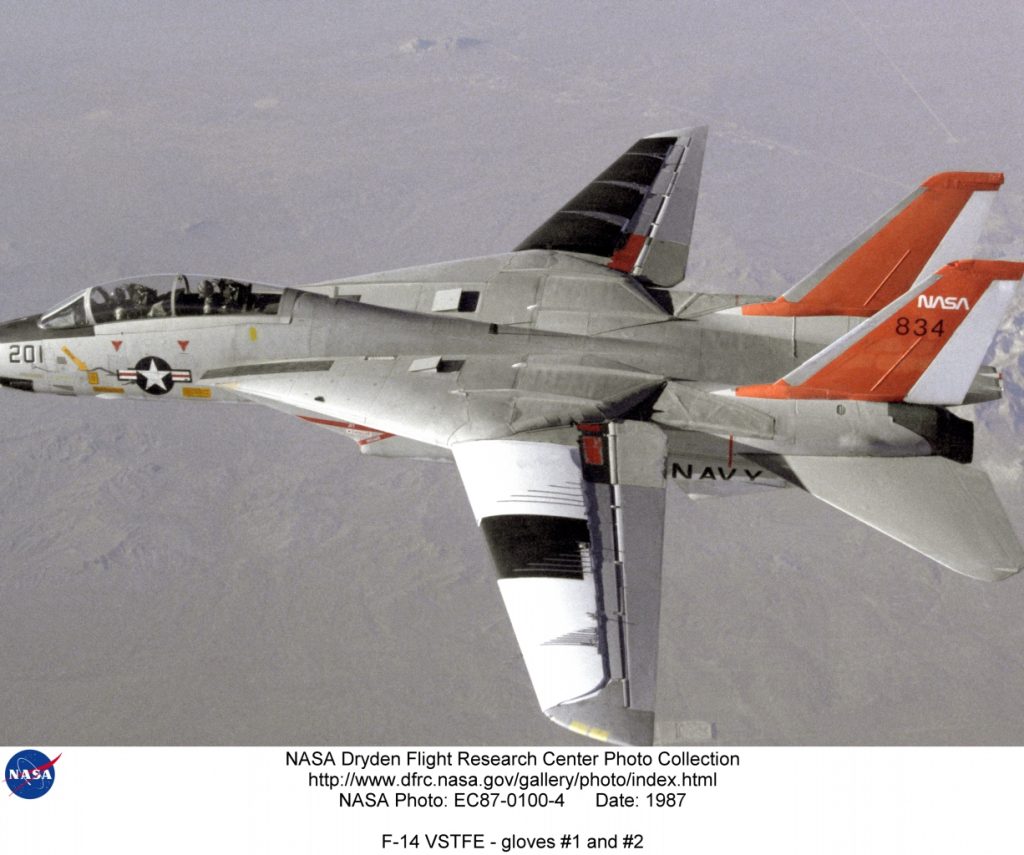

The F-14 proved to be an excellent choice for this research because of its adjustable wings, broad spectrum of Mach and Reynolds numbers, accessibility, and advantageous pressure distribution over the wing surfaces. In the VSTFE project, the exterior wing sections of NASA aircraft number 834 were equipped with custom-designed natural laminar flow “gloves.” These additions aimed to create smoother wing surfaces and modify the airfoils to attain particular pressure distributions. The initial glove, placed atop the left wing, improved upon the conventional wing design. Meanwhile, the subsequent glove was crafted to generate specified pressure patterns at Mach 0.7, facilitating detailed examination of how airflow transitions from laminar to turbulent under different sweep angles and flying circumstances.

The achievements of both NASA 991 and NASA 834 highlight the significant role that military planes such as the F-14 Tomcat have had in enhancing our knowledge of aerodynamics, flight controls, and design refinement. By conducting extensive flight tests and fostering inter-agency cooperation, these airplanes contributed greatly to advancements not just within naval aviation but also towards shaping subsequent generations of research and commercial aircraft. Moving forward on this exploration, we will see further developments resulting from their legacy. Flight Test Files These tales underscore the innovation and determination that keep molding our aerial frontiers.
